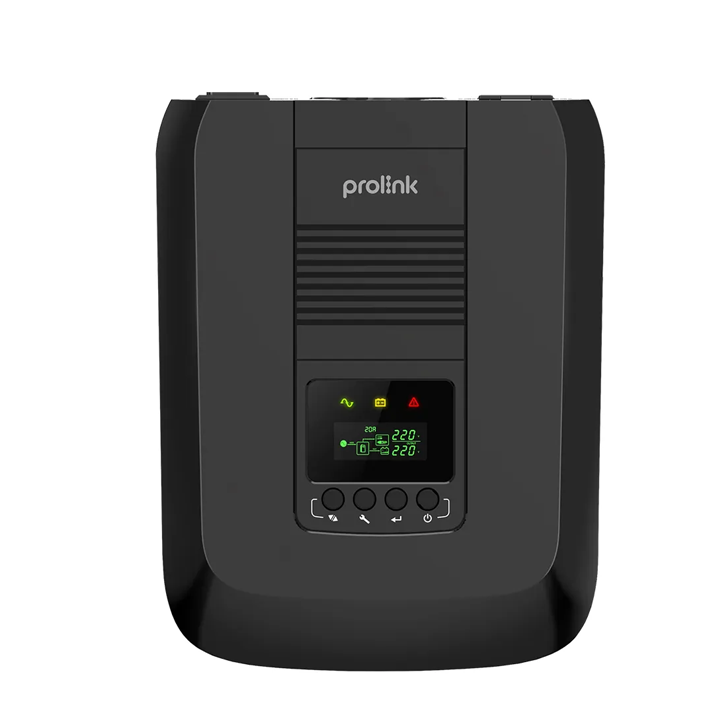

Prolink 2200VA IPS Series Power Inverter (IPS2402)
Prolink 2200VA IPS Series Power Inverter (IPS2402)
The Prolink IPS2402 2200VA Power Inverter is a high-capacity simulated sine wave inverter designed to provide reliable backup power for homes, offices, and small businesses. Delivering 2200VA (1800W) of output power, it operates on a 24V battery system and efficiently converts DC power into stable AC power during utility outages.
The inverter features selectable narrow and wide input voltage ranges, making it suitable for both sensitive electronic devices and everyday household appliances. Its easy-to-read LCD display provides real-time information on input/output voltage, battery level, load status, and system alarms, allowing users to monitor performance at a glance.
Equipped with comprehensive protection against overload, overheating, overcharging, and low battery conditions, the IPS2402 ensures safe and dependable operation. It also supports an optional MPPT solar charge controller, making it an excellent choice for solar backup systems and off-grid power applications.
| Model |
Prolink IPS2402 |
|---|---|
| Inverter Type |
Simulated Sine Wave |
| Capacity |
2200VA / 1800W |
| Battery System |
24V DC |
| Input Voltage |
220–240VAC |
| Input Voltage Range |
170–280VAC (Narrow), 90–280VAC (Wide) |
| Input Frequency |
50/60Hz Auto Sensing |
| Output Voltage |
230VAC |
| Output Frequency |
50/60Hz ±1% |
| Transfer Time |
10–20ms (Typical), 40ms (Max) |
| Efficiency |
>95% (AC Mode), >80% (Battery Mode) |
| Maximum Battery Capacity |
Up to 200Ah |
| LCD Display |
Input Voltage, Output Voltage, Load Level, Battery Level, Fault Status |
| Protection |
Overload, Overcharge, High Temperature, Low Battery, Fault Protection |
| Solar Support |
Optional MPPT Solar Charge Controller |
| Applications |
Home Backup, Office Equipment, Networking Devices, Security Systems |
